IP65 outdoor mini underground lights

Product Introduction

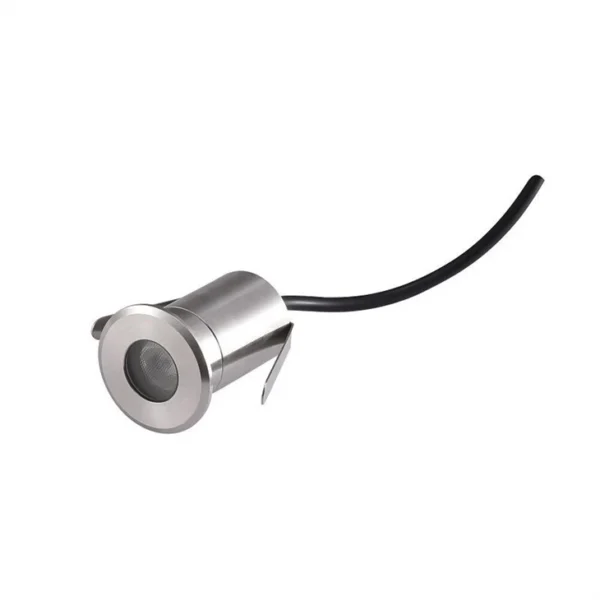

This 1W or 3W Small mini underground Lights is shaped by stainless steel SUS 316L# With Step tempered glass T=8mm, IK08.

O-oring Silicone gasket. Build in Cree SMD 3535 RGB 3 IN 1.

PCB made by Excellent heat conductivity aluminum. coefficient of heat Conductivity≥2.0w/mk

Build in Constant Voltage Input, Constant Current Output.

Application environment: Temperature of water between -20˚C-40˚C.

Plastic Mounting sleeve included.

Lens: Optical lens, efficiency≥85%

Warranty: 3 years against manufacturing defect

Product Parameter

Item No.	GA-DMS1W/3W
Power	1W or 3W
LED type	For CREE
Luminous flux	80lm/W
CCT	2700K, 3000K, 4000K, 6000K, R/G/Y/B
CRI	80+
Beam angle	30°, 45°, 60°, 90°, 120°
Dimension	Φ46Xh72(mm)Diameter x length
Warranty	3Years
Certifications	CE, RoHS
Input voltage	DC12V
Insulation class	Class III
Cable	1 PC rubber cable 1M H05RN-F 2×0.5mm square
Driver	For Done
IP rating	IP68 Waterproof
IK rating	IK08
Housing	SUS316
Protection finishing	SUS316
Glass	Step tempered Glass. T=10mm.
Loading capacity	500 kgs
Cable Gland	PG7 IP68
Gasket	O-ring PMQ silicone seal
